RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3 (RAM-101-225B2-SAM60CP-V7CU)
RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3 (RAM-101-225B2-SAM60CP-V7CU)
SKU:RAM-101-225B2-SAM60CP-V7CU
Couldn't load pickup availability
RAM® Mounts has partnered with Samsung to develop a powered cradle for the Samsung Galaxy Tab Active5, Tab Active3 & 2. Compatible with the Samsung OEM case as well as the RAM® Skin™, this cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. This ultra-low-cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device. This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5€� round ball plates, medium length double socket arm, and a GDS® modular hardwire charger €“ an ideal solution for providing power to the Galaxy Tab Active5, 3 & 2.
Features
Features
- RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Socket to Socket Length: 3"
- Ball Size: B Size (1")
- Weight Capacity:
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
- Materials: Steel, Marine-grade aluminium, High strength composite
- Packaging Type: Poly Bag
- Input Voltage: 5.3-5.4VDC
- Output Voltage: 5VDC
- Power Output: 500mA
- Input Connector: USB Type-C Female
- Input Cable Length: 215mm
- Operating Temperature: -10°C to +70°C
- Storage Temperature: -40°C to +70°C
- Regulatory:
- Overvoltage/Load Dump Compliance: Meets SAE J-1113
- FCC, CE, UKCA, IC
- Certifications:
- E-Mark Certification
- Integrated Short Circuit Protection
- WEEE and RoHS Compliant
- USB 2.0 BC 1.2 DCP Support
- IEC/UL 62368-1
- Weight: 1.88 lb
- Additional Information: *5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options.
Compatibility
Compatibility
- Samsung: Galaxy Tab Active5, Galaxy Tab Active3, Galaxy Tab Active2
Product Guides
Product Guides

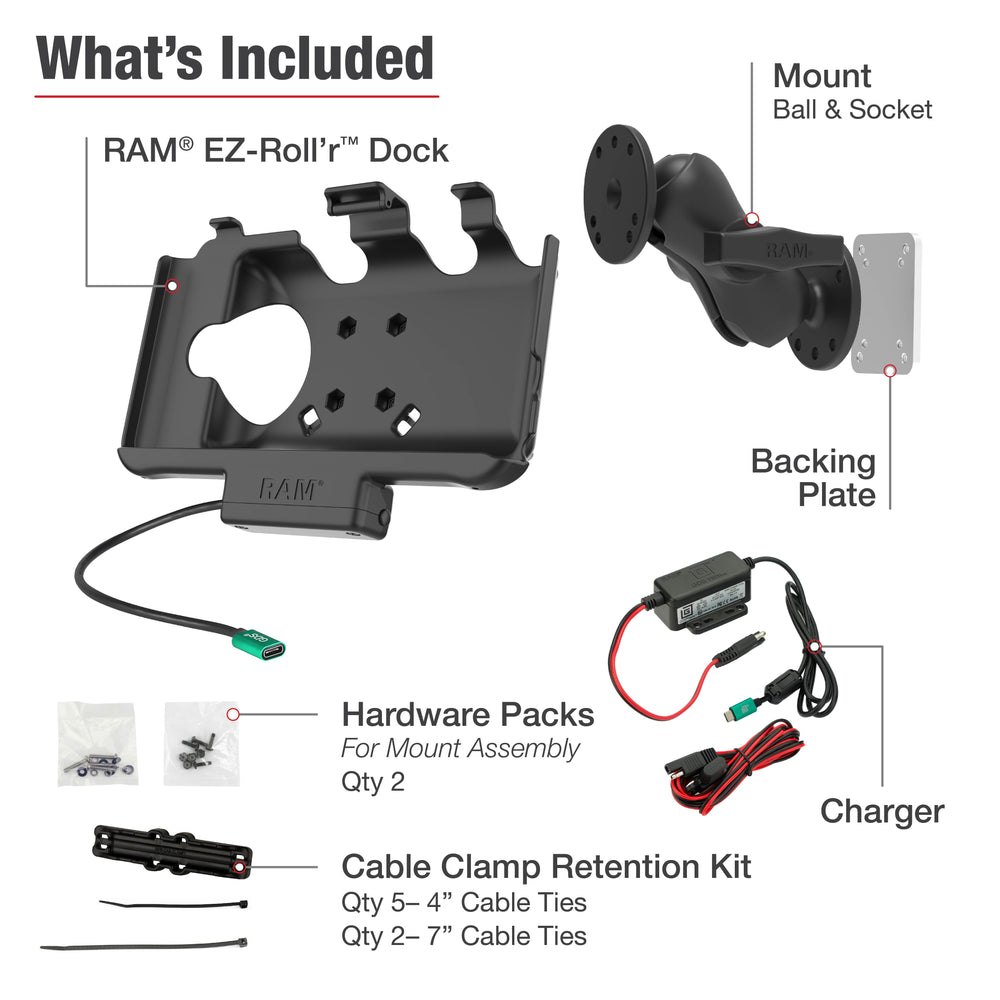

Package Content
Package Content
- 1 x RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3 (RAM-101-225B2-SAM60CP-V7CU)
