RAM Key Locking USB-C Powered Dock for Samsung Tab Active5 & 3 (RAM-HOL-SAM58CPKLU)
RAM Key Locking USB-C Powered Dock for Samsung Tab Active5 & 3 (RAM-HOL-SAM58CPKLU)
SKU:RAM-HOL-SAM58CPKLU
Couldn't load pickup availability
This powered key locking cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a key lock that’s compatible with the RAM Skin or factory device skin, as well as GDS Hand-Stand and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM components containing the universal AMPS hole pattern.
Features
Features
- Key locking powered cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
- Contains 4-hole AMPS hole pattern for RAM® ball components
- Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty
Tech Specs
Tech Specs
- Width: 9.25"
- Height: 7.75"
- Depth: 3"
- Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
- Materials: High strength composite
- Packaging Type: Poly Bag
- Input Voltage: 5.3-5.4VDC (USB power source dependent)
- Output Voltage: 5VDC (USB power source dependent)
- power Output: 500mA
- Input Connector: USB Type-C Female
- Input Cable Length: 215mm
- Warranty: 3 year warranty
- Weight: 1.03 lb
- Additional Information: This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options

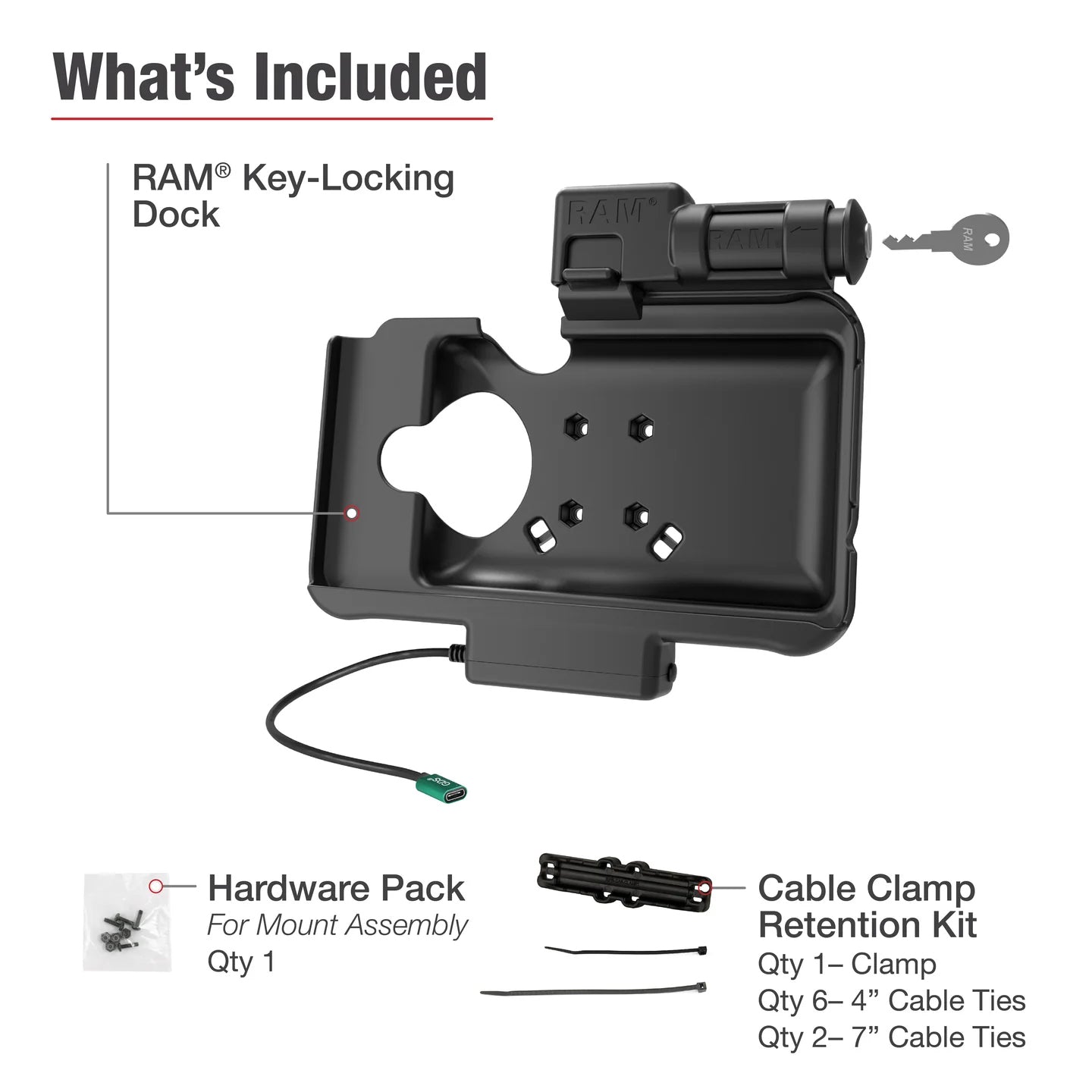

Package Content
Package Content
- GDS® Cable Clamp for mUSB & USB Type-C Cables | RAM-GDS-CAB-CLAMP1U
