RAM® Quick-Draw™ Mount for Zebra TC8000/8300 with 4" Square Post Clamp (RAM-101-247-4-ZE9U)

RAM® Quick-Draw™ Mount for Zebra TC8000/8300 with 4" Square Post Clamp (RAM-101-247-4-ZE9U)

RAM-101-247-4-ZE9U
Ex. Tax: $291.30 NZD
$291.30 NZD
Sale Sold out

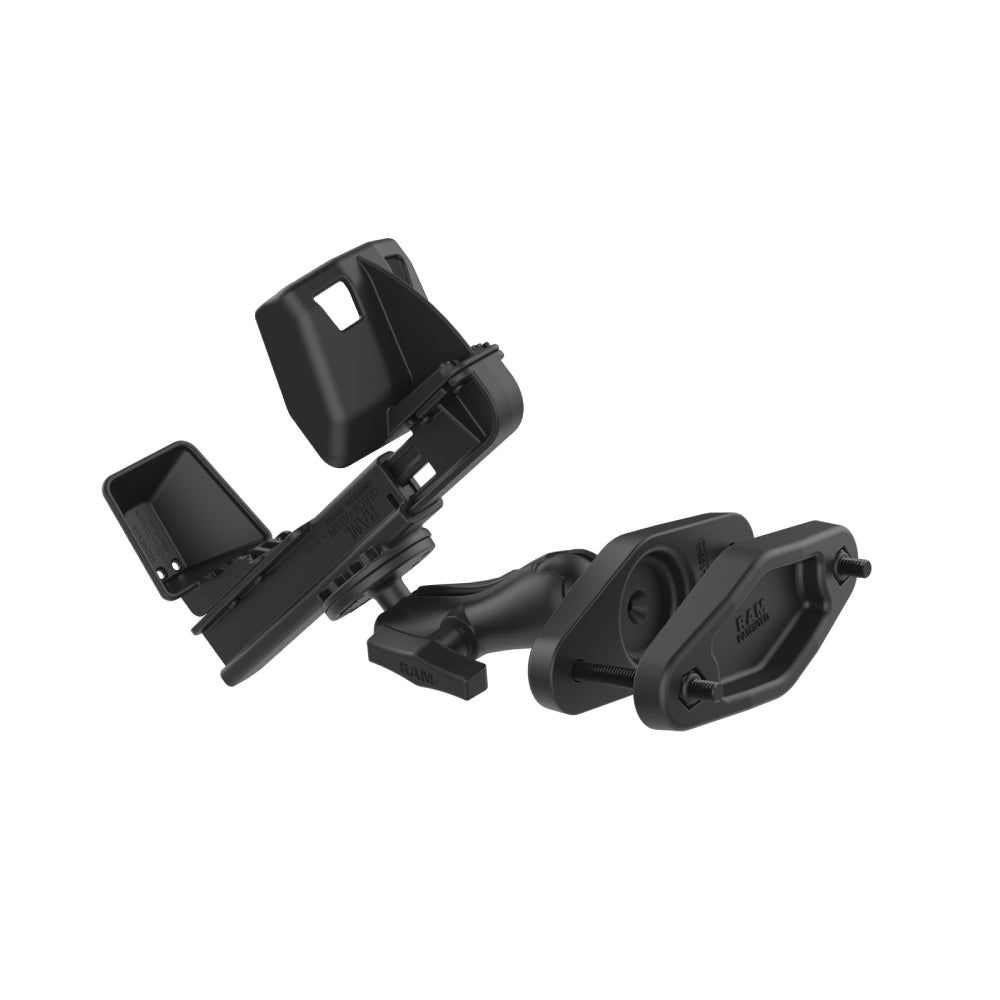

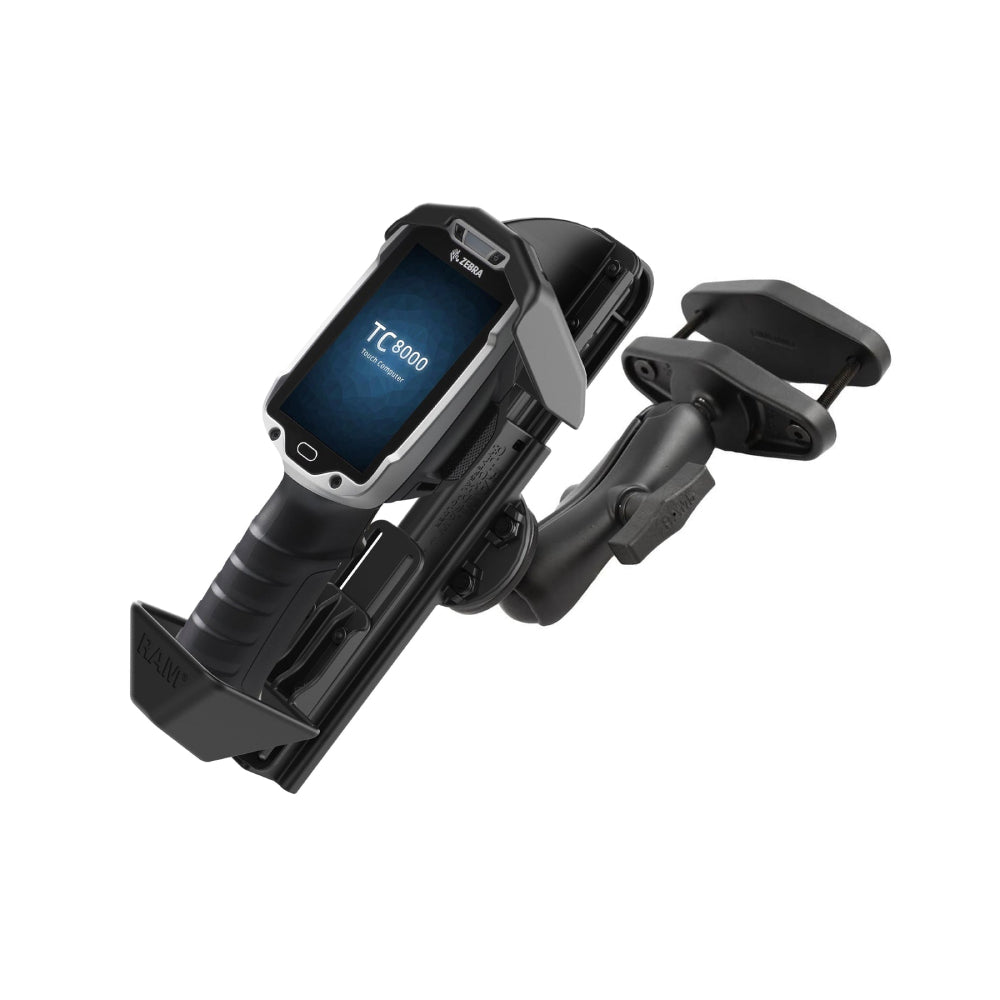

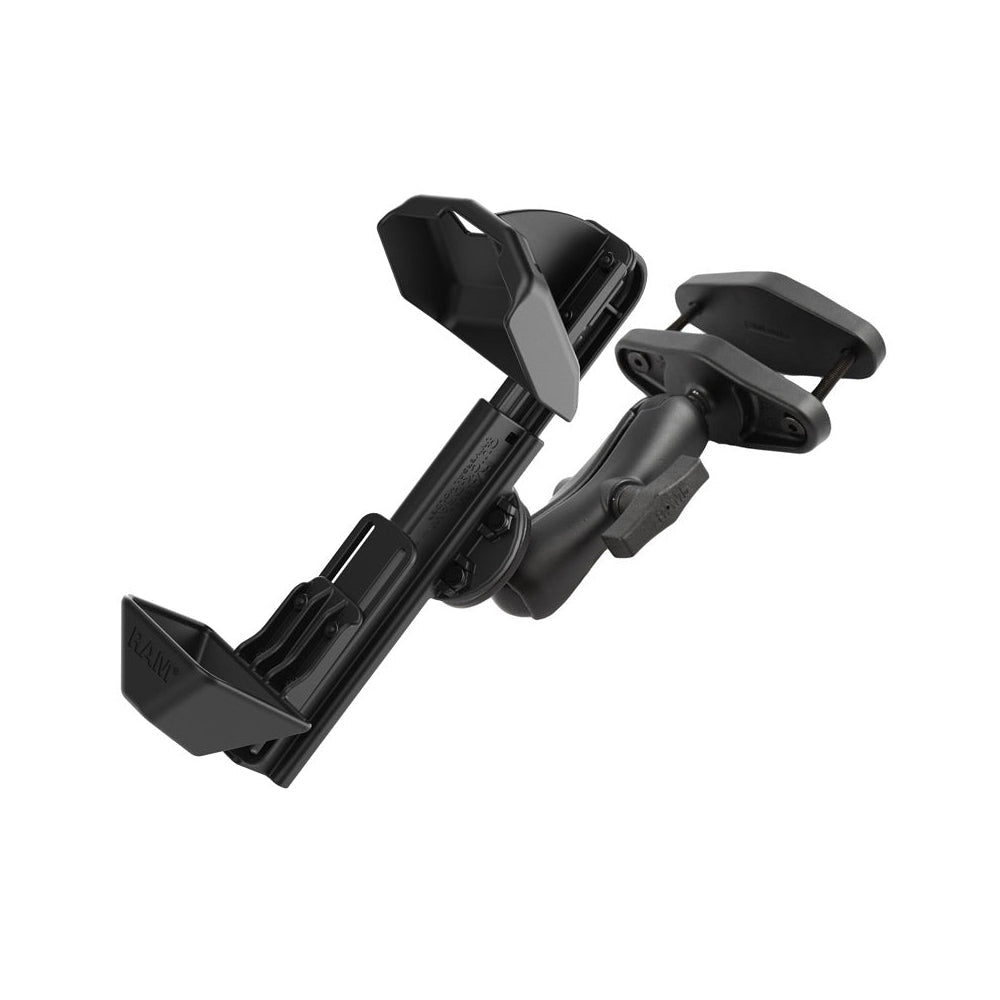

This RAM® Quick-Draw™ is designed specifically for the Zebra TC8000 and TC8300 scanners and consists of a double socket arm, a round 2.5" diameter round base with the universal AMPS hole pattern and a 4" clamp base. The clamp base will wrap around a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.

Features

  • Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your Zebra TC8000 and TC8300
  • 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
  • Includes 4" clamping base for posts and a medium length, C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Tech Specs

  • Clamp Range: 4" max width
  • Socket to Socket Length: 4.66"
  • Ball Size: C Size (1.5")
  • Weight Capacity Standard Use: 4 lbs
  • Weight Capacity Heavy-Duty Use: 3 lbs
  • Material: Marine Grade Aluminium
  • Weight: 2.75 lbs.

Package Content

    1 x RAM® Quick-Draw™ Mount for Zebra TC8000/8300 with 4" Square Post Clamp (RAM-101-247-4-ZE9U)
