RAM® Quick-Grip™ 15W Waterproof Wireless Charging Suction Cup Mount (RAM-B-166-UN14W-1)
RAM® Quick-Grip™ 15W Waterproof Wireless Charging Suction Cup Mount (RAM-B-166-UN14W-1)
SKU:RAM-B-166-UN14W-1
Couldn't load pickup availability

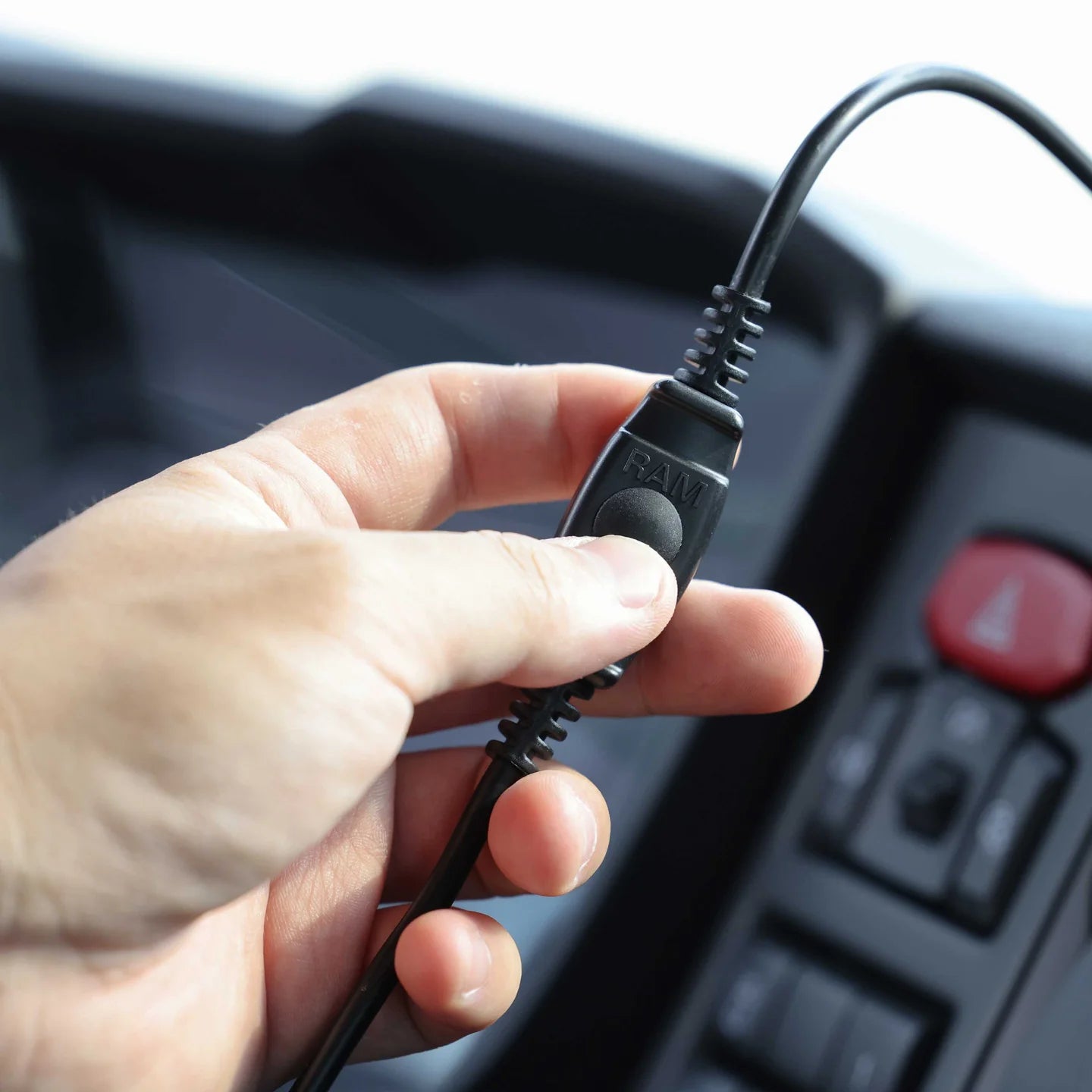

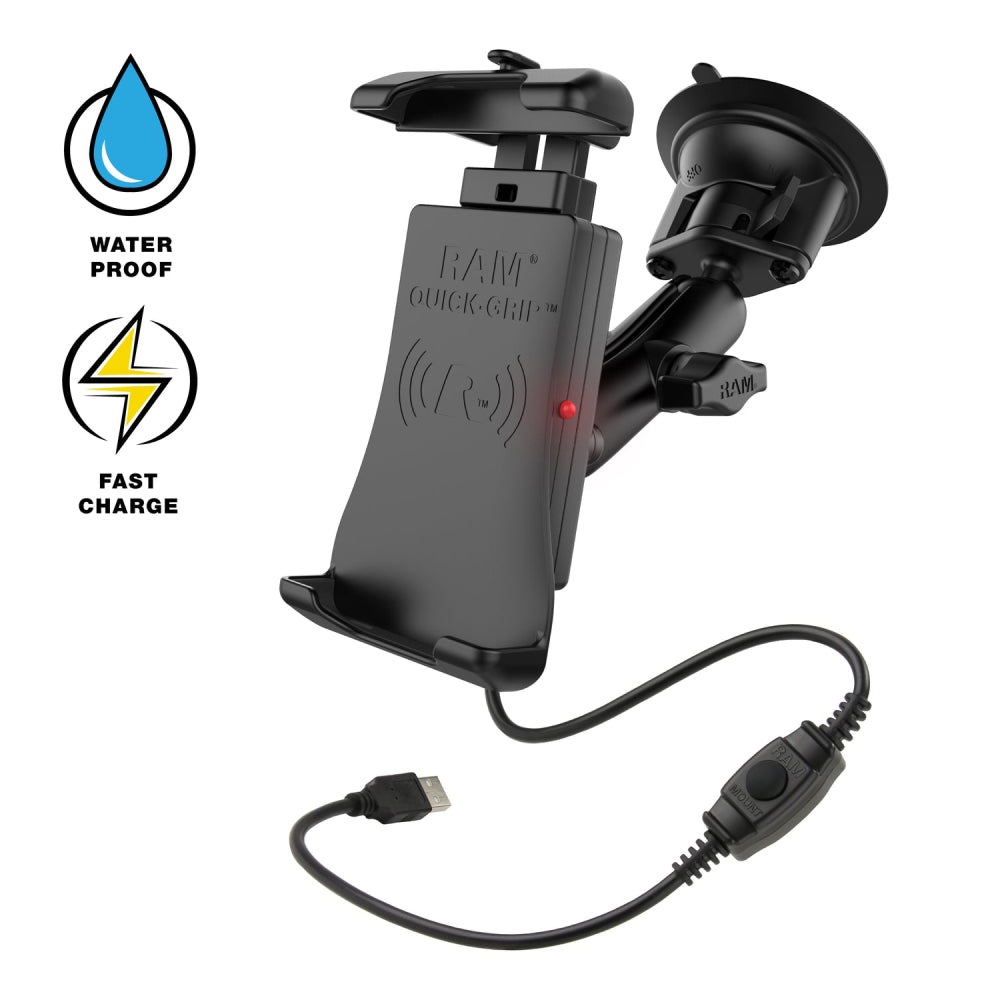

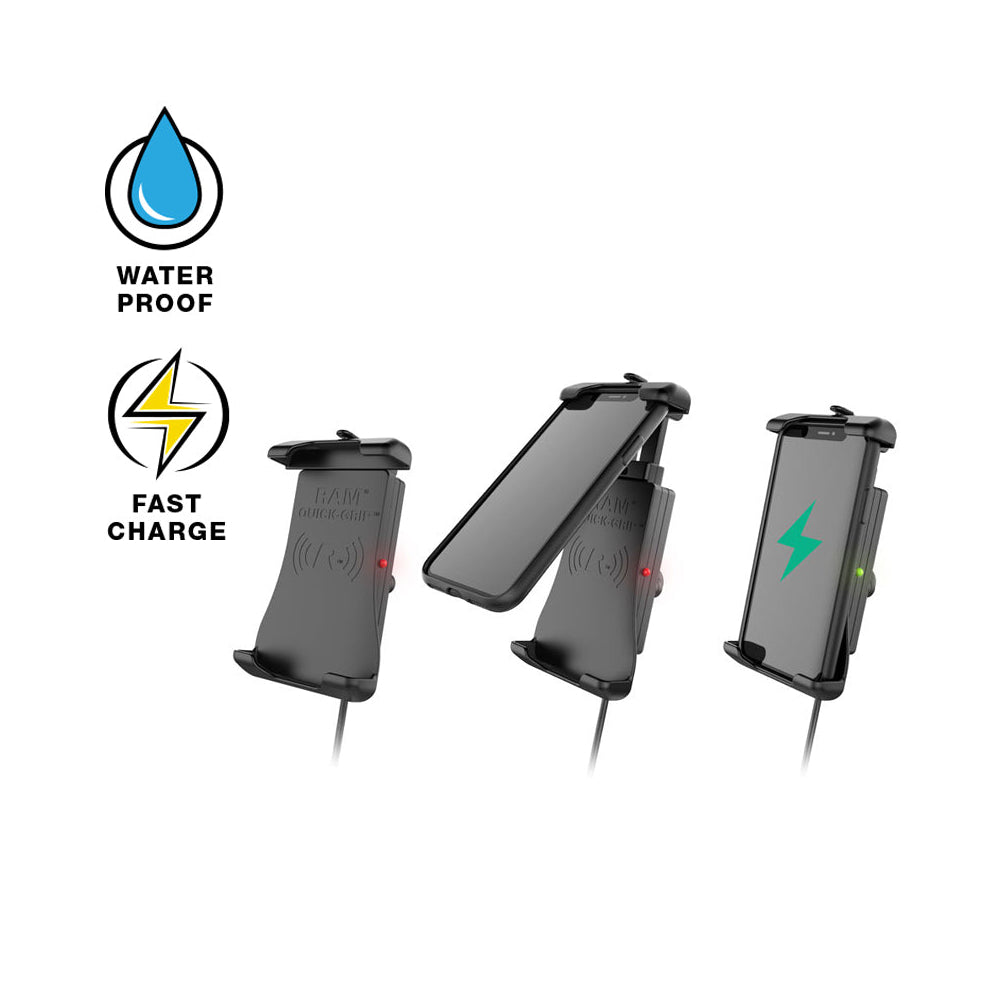

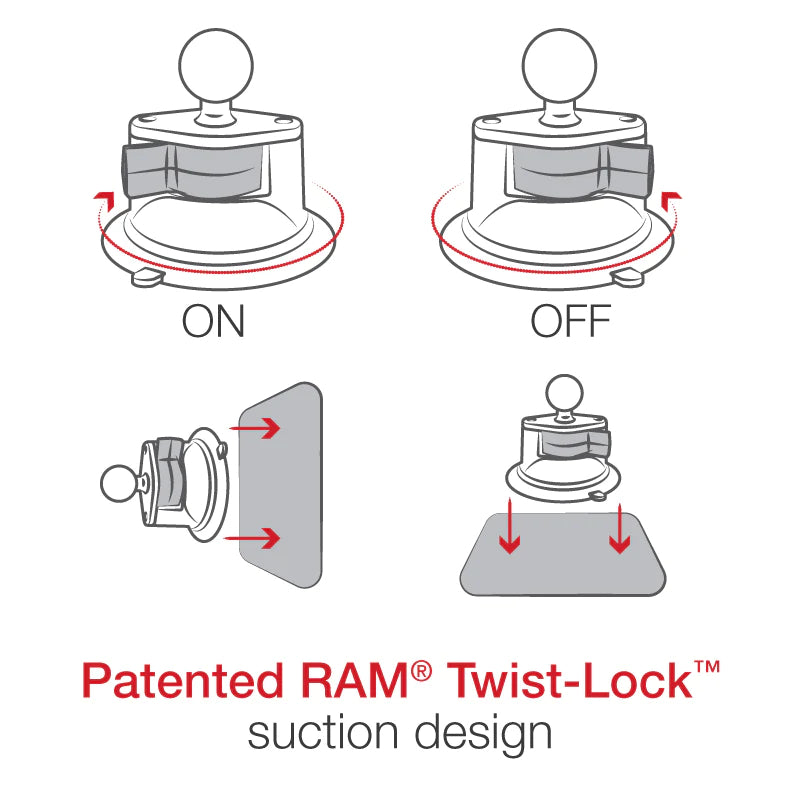

The RAM® Quick-Grip™ Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi-compatible wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless suction cup kit includes a B-size diamond base featuring a 1” rubber ball, medium-length double socket arm, and RAM® Twist-Lock™ suction cup. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.
Features
Features
- Waterproof Qi-compatible wireless phone charging cradle features spring-loaded RAM® Quick-Grip™ design and 15W maximum output

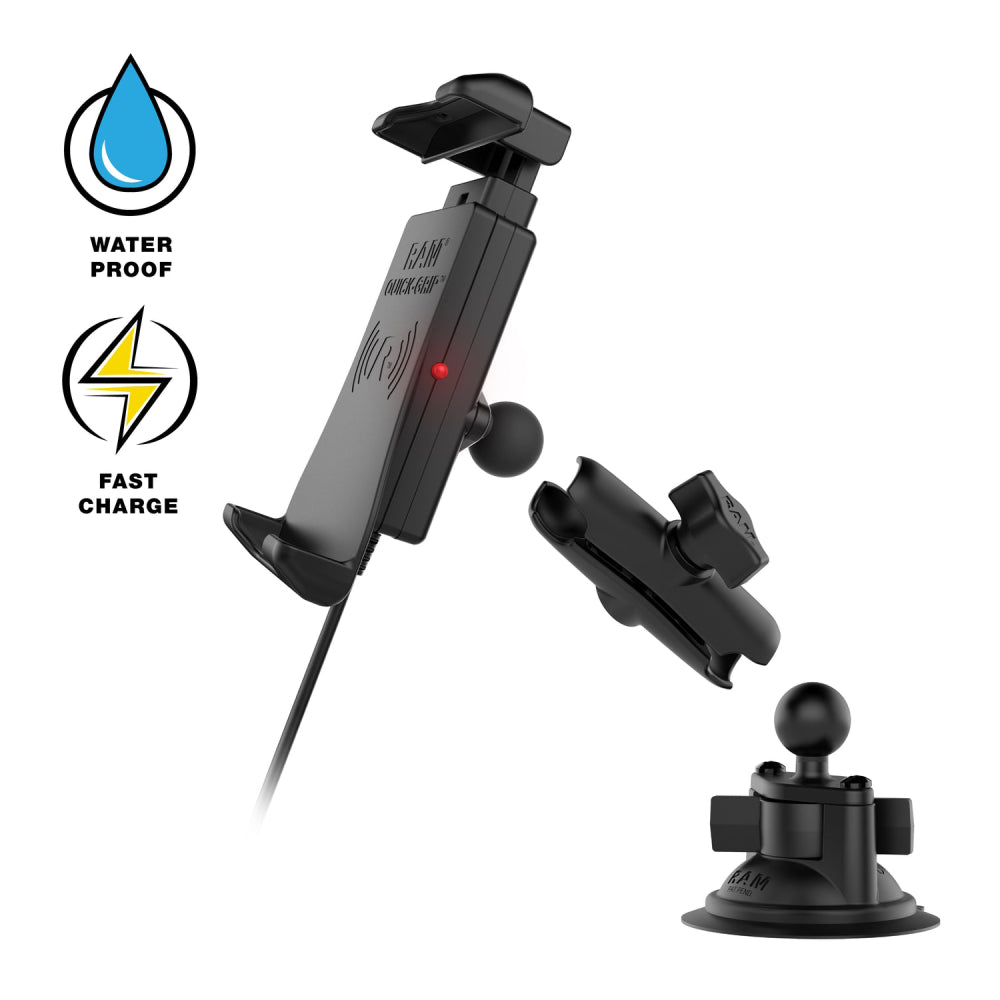

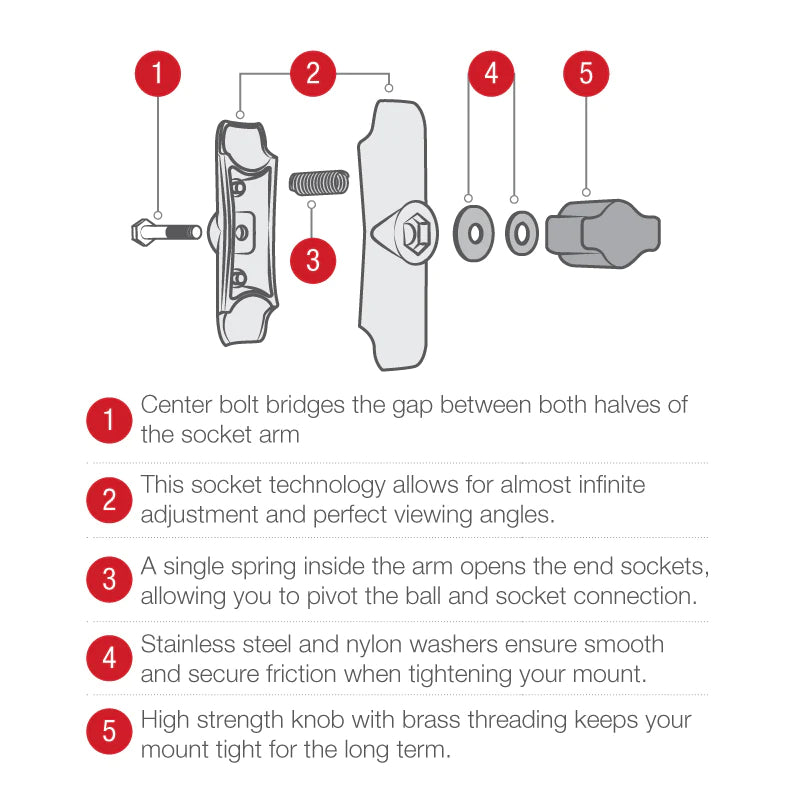

- Kit for vehicles includes a wireless charging cradle, B size diamond ball base, medium double socket arm, and RAM® Twist-Lock™ suction cup
- Made of powder-coated, marine-grade aluminium, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
- RAM® Mounts backed by a lifetime warranty, RAM® electronics backed by a 1-year warranty with proof of purchase required
Tech Specs
Tech Specs
- Compatible Devices: See all in Extra Info tab
- Holder Dimension Height Range: 5.625" - 6.625"
- Holder Dimension Max Width: 3.125"
- Holder Dimension Max Depth: .7"
- Suction Size: 3.3" Diameter
- Socket-to-Socket Length: 3"
- Ball/Socket Size: B Size (1")
- Weight Capacity Standard Use: 2 lbs
- Weight Capacity Heavy-Duty Use: 1 lb
- Materials: Marine-grade aluminum, High strength composite, Stainless steel
- Input Power: 5V-2A; 9V-1.67A
- Output: 15W
- Conversion Efficiency: 85% Max
- Maximum Case Thickness: 6mm
- Working Frequency: 110-205KHZ
- Product Standard: WPC v.1.2.4
- Qi Compatible
- Compatible with QC2.0/QC3.0 power supplies
- Connector Type: USB Type-A Male
- Input Cable Length: 20" with optional 1.2M extension cable
- Compliance: Over current protection short circuit protection and over temperature protection
- Certifications: FCC, IC, KC, CE, e-Mark, WEEE, RCM, and RoHS Compliant
- Weight: 1.65 lbs.
- Warranty Status: 1 year warranty
- Size of case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities such as the Apple iPhone 7 or Samsung Galaxy S5.
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.
The size of the case may affect compatibility. Not compatible with phone cases containing metal. This holder will not charge phones that do not have built-in wireless charging capabilities, such as the Apple iPhone 7 or Samsung Galaxy S5.
This charger is not recommended for Apple iPhone 12, 13 & 14. These iPhone models support two wireless charging technologies: Apple’s proprietary “Magsafe” and WPC (Wireless Power Consortium) “Qi” standard. MagSafe can charge iPhones ~33-45% faster than the WPC Qi standard. RAM Wireless charging products provide WPC Qi BPP and EPP standards today up to 15W.
Package Content
Package Content
- 1 x RAM® Quick-Grip™ 15W Waterproof Wireless Charging Suction Cup Mount (RAM-B-166-UN14W-1)
