RAM® Combo Locking Power + Data Dock for Samsung Tab Active5 & 3 (RAM-HOL-SAM58CPCL-1AU)

RAM® Combo Locking Power + Data Dock for Samsung Tab Active5 & 3 (RAM-HOL-SAM58CPCL-1AU)

SKU:RAM-HOL-SAM58CPCL-1AU

Ex. Tax: Regular price Ex. Tax: $272.00 NZD
Regular price Sale price $272.00 NZD
Sale Sold out

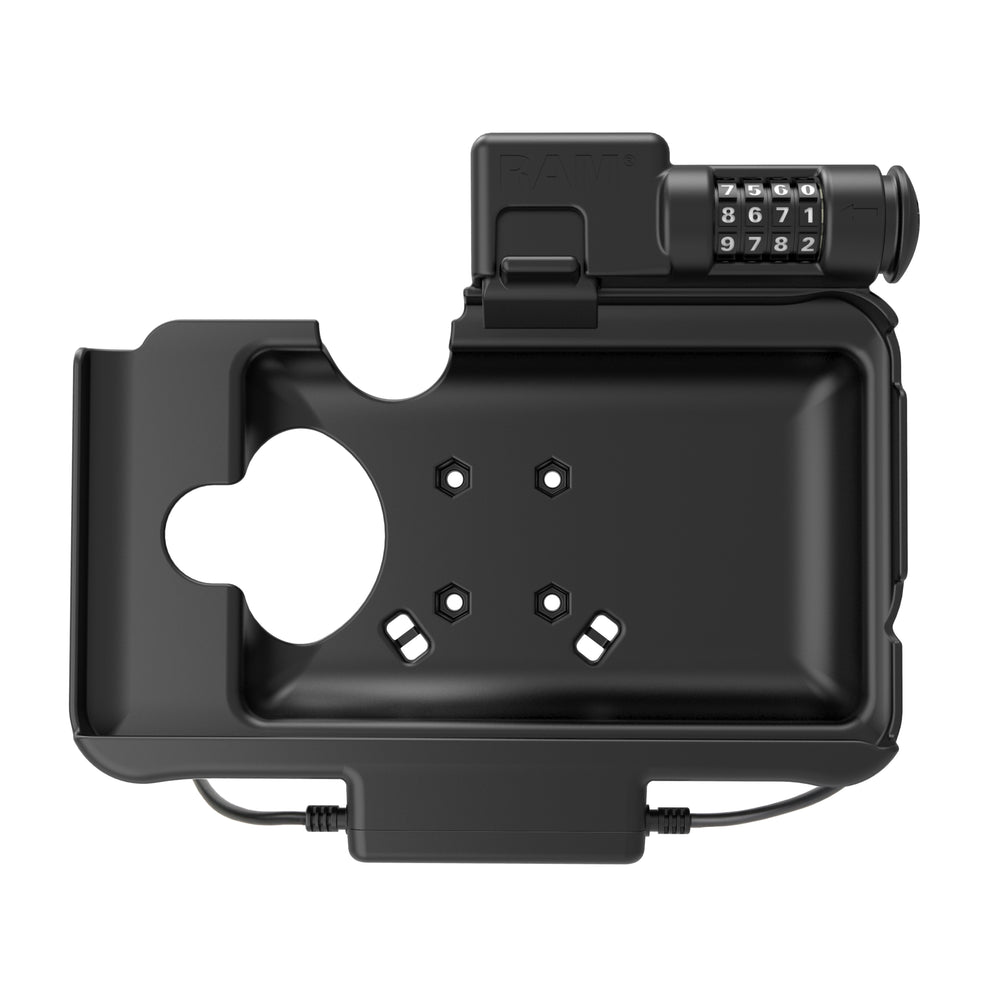

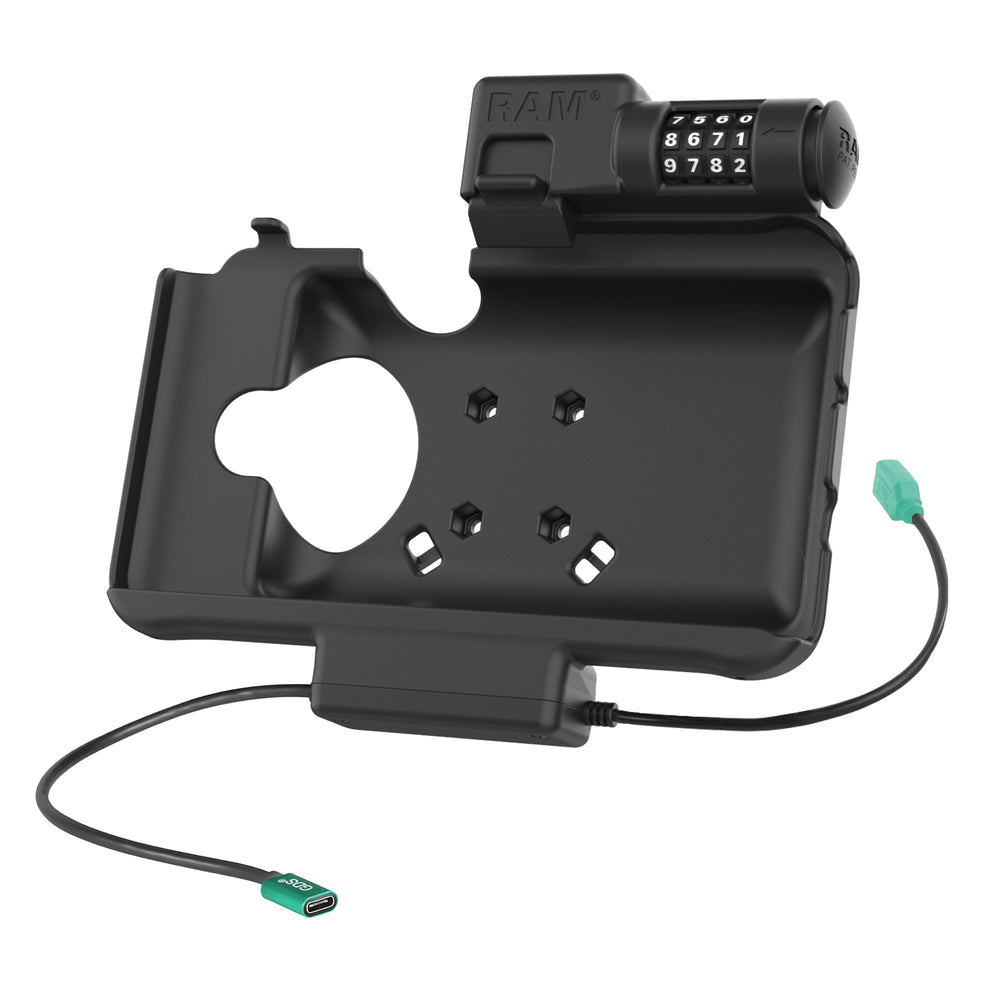

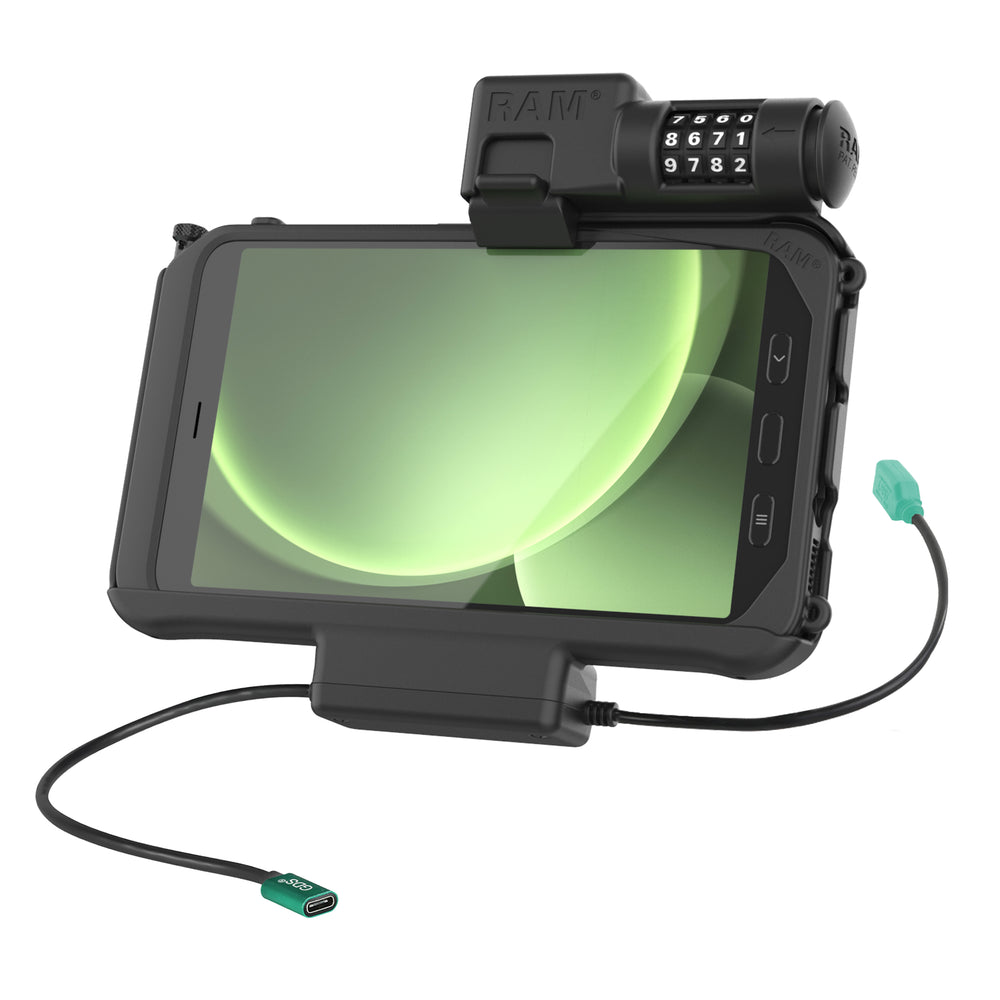

This combination locking RAM® EZ-Roll€™r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port for an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 or 2 from your vehicle, to your person, to your desk with zero hassle.

Features

  • Combination locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector

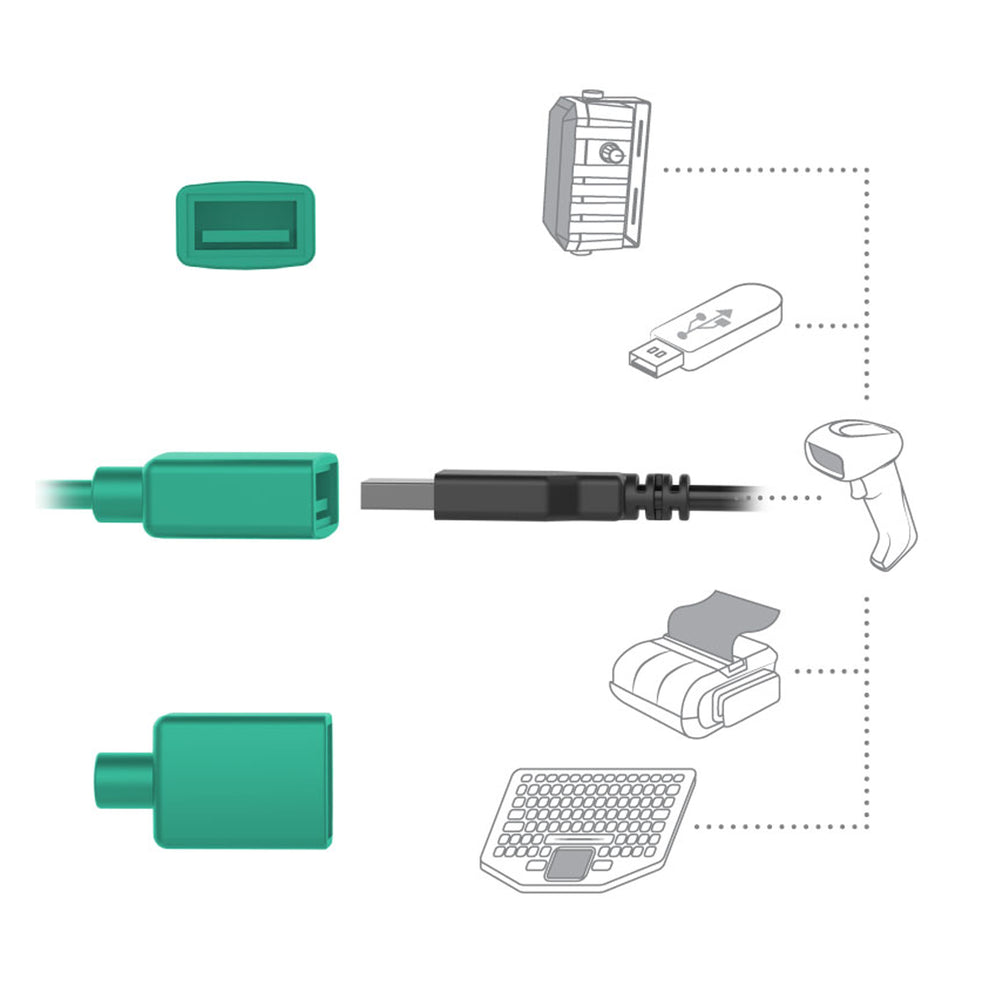

  • Power delivered via a USB-C connector; connect a single input device via a USB-A connector

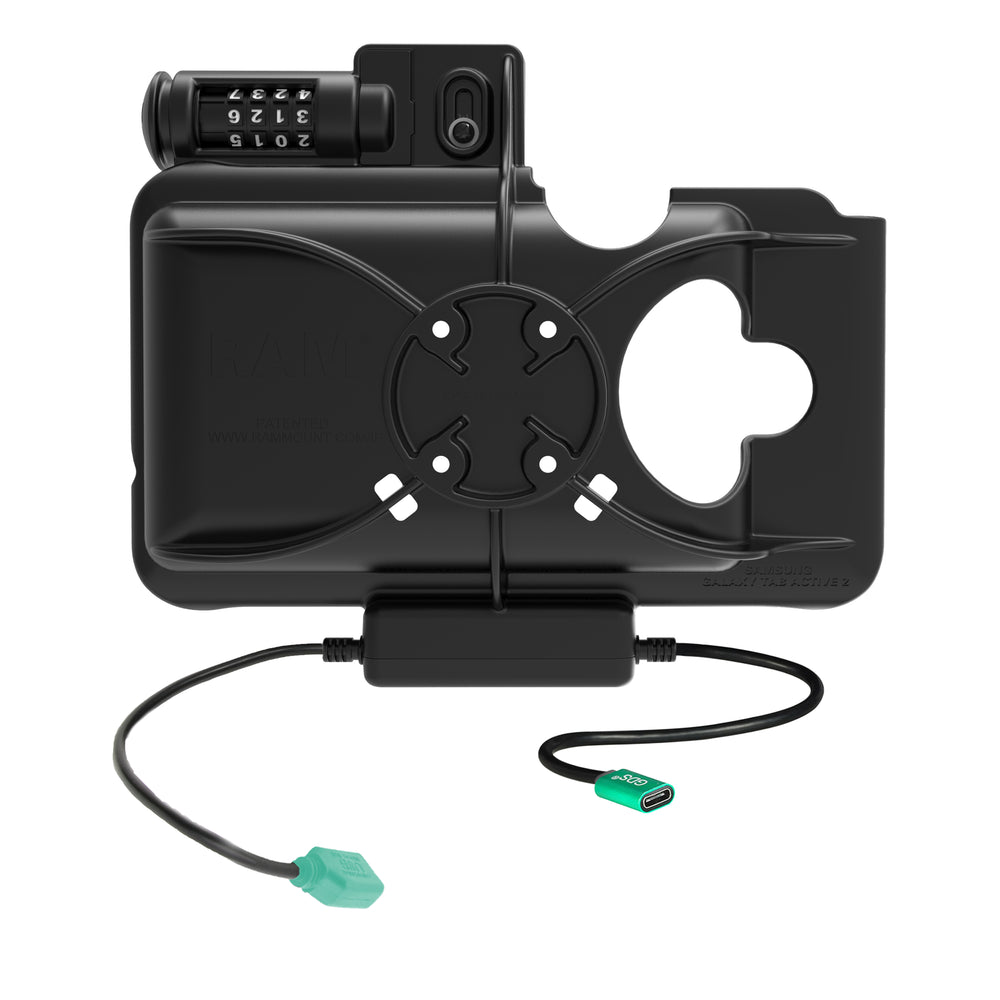

  • Contains 4-hole AMPS hole pattern for RAM® ball components
  • Access to speakers, mics, headphone jack, and NFC reader remain while the device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
  • Backed by a 3-year warranty

Tech Specs

  • Product Dimensions: Width: 9.25", Height: 7.75", Depth: 3"
  • Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"
  • Materials: High strength composite
  • Packaging Type: Poly Bag
  • Input Voltage: 5.3-5.4VDC
  • Output Voltage: 5VDC
  • Power Output: 500mA
  • Input Connector: USB Type-C Female
  • Input Cable Length: 250mm
  • Output Connector: USB 1.1 Type A
  • Output Cable Length: 250mm
  • Peripheral Output: 500mAh
  • Transfer Speed: 12Mbps
  • Warranty: 3 year warranty
  • Weight: 1.03 lb
  • Additional Information: This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options

Compatibility

  • Samsung: Tab Active5, Tab Active3, Tab Active2

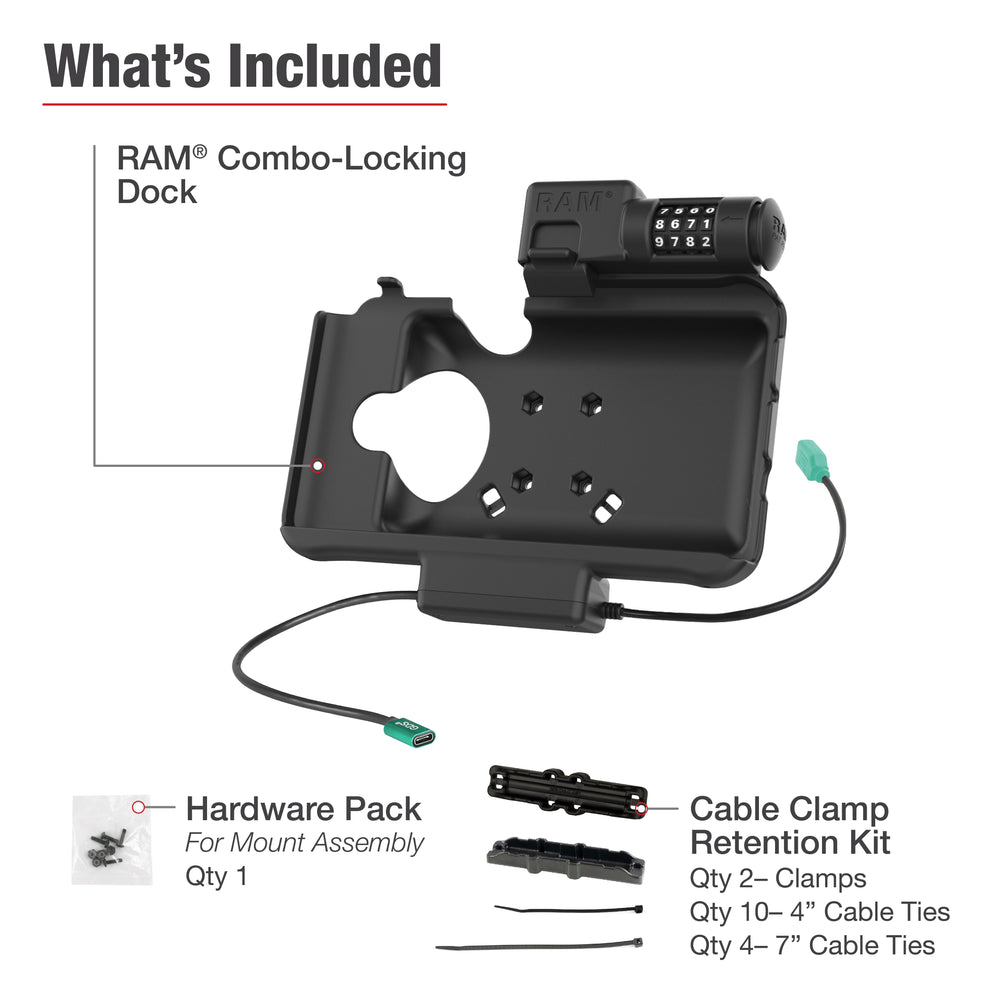

Package Content

  • 1 x RAM® Combo Locking Power + Data Dock for Samsung Tab Active5 & 3 (RAM-HOL-SAM58CPCL-1AU)
