GDS® Audio™ Amplified Speaker with PTT Breakout Feature (RAM-SPEAK-A02)

GDS® Audio™ Amplified Speaker with PTT Breakout Feature (RAM-SPEAK-A02)

SKU:RAM-SPEAK-A02

Ex. Tax: Regular price Ex. Tax: $179.00 NZD
Regular price Sale price $179.00 NZD
Sale Sold out

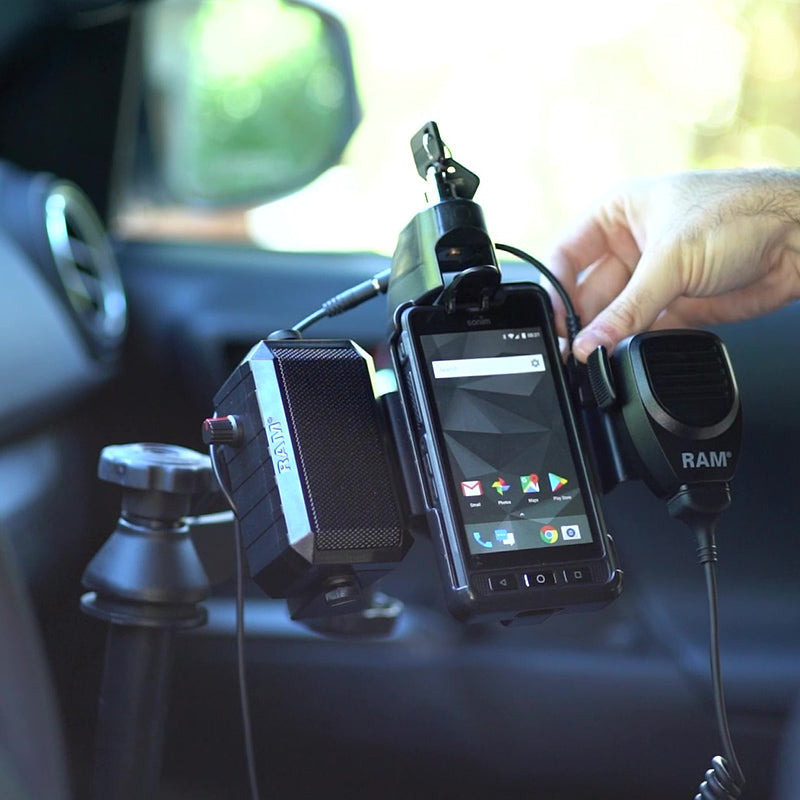

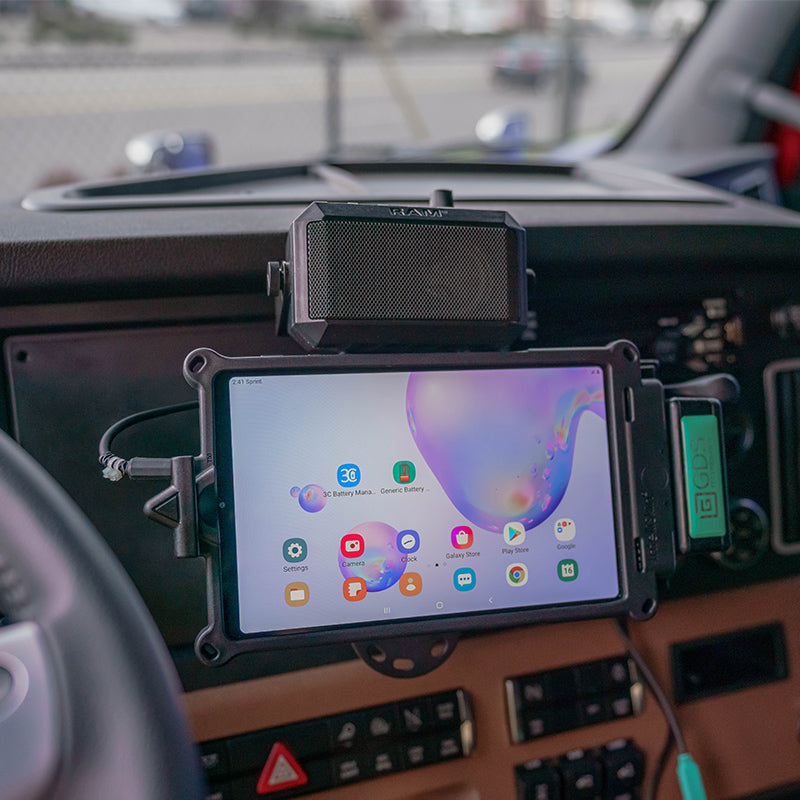

The GDS® Audio™ amplified audio breakout and speaker can be hardwired into the cab of your vehicle – with no batteries required for power. The audio breakout feature also allows for the inclusion of a PTT (push to talk) microphone (not included) or headset (not included) to enable half or full duplex conversation depending on the device and call solution being used. An adjustable knob allows for up to 99dB of amplified audio feedback from your device, and the speaker includes built-in overcurrent, short circuit, and overvoltage protection. As part of the GDS® Ecosystem™, the speaker can be mounted to any GDS® vehicle dock using the RAM® short bracket adapter or RAM® standard bracket adapter. Each bracket includes hardware to mount the speaker to the bracket, as well as the bracket to your GDS® vehicle dock.

Features

  • PTT-enabled amplification speaker with independent adjustable volume knob

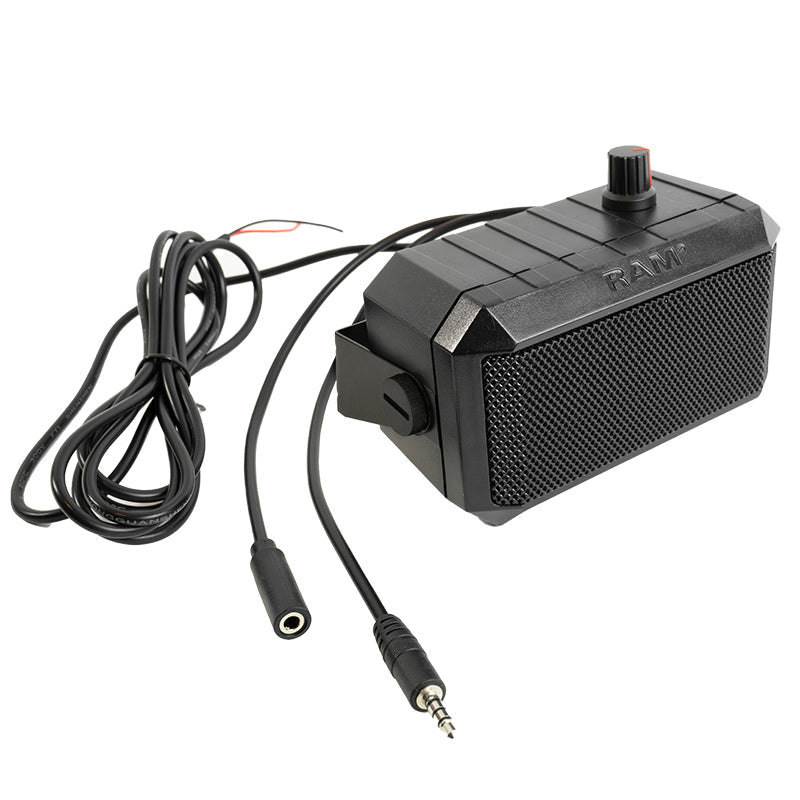

  • Includes hardwire power input cable, audio input cable and audio output cable
  • 99db max volume level
  • Backed by a 3-year warranty.

Tech Specs

  • Hardware Included:
    • Mounting Bracket
    • (2) #8-32 x 5/8" Machine Screws
    • (2) #8-32 Nylock Nuts
  • Speaker Specifications:

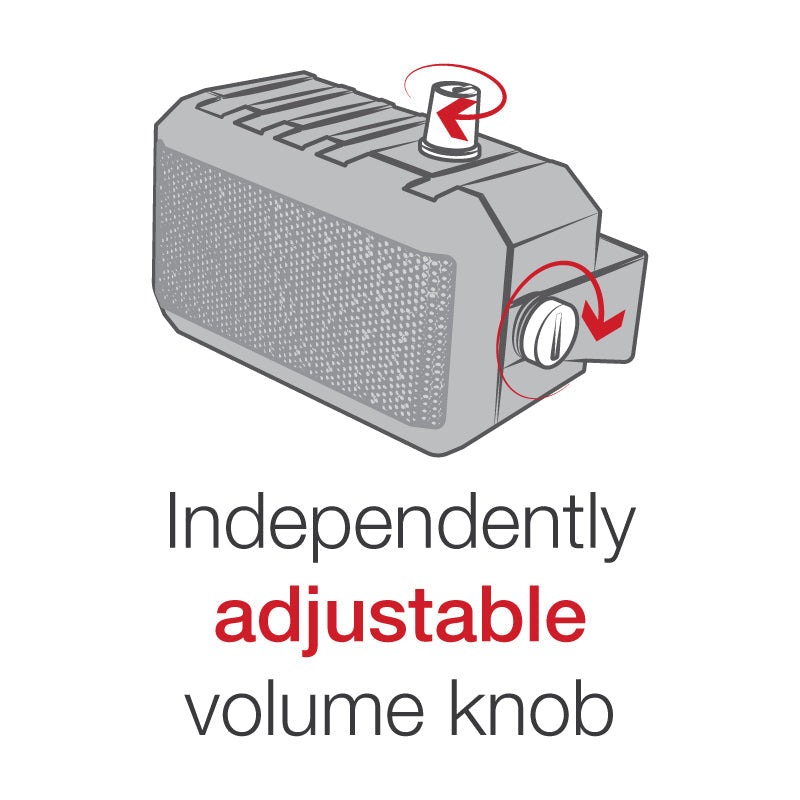

    • Independently adjustable volume knob
    • Max volume level: 99dB
    • 8Ω / 10W rated speaker
  • Packaging Type: Box
  • Input Voltage: 9-26VDC
  • Power Output:
    • Peak Power: 10W
    • RMS Power: 8W
  • Input Connector: 3.5mm TRRS connector, with a modified CTIA pin map for audio in/out
  • Input Cable Length: 1150mm long red/black power cable
  • Output Cable Length: 150mm long audio cable with 3.5mm mono plug jack
  • Operating Temperature: -20°C to +80°C
  • Storage Temperature: -40°C to +85°C
  • Regulatory: Over current protection, short circuit protection, and over voltage protection
  • Certifications: FCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5a
  • Warranty: 3 year warranty
  • Weight: 0.93 lb

Package Content

  • 1 x GDS® Audio™ Amplified Speaker with PTT Breakout Feature (RAM-SPEAK-A02)
