RAM Twist-Lock Suction Cup Double Ball Mount - Short (RAM-B-166U-A)

RAM Twist-Lock Suction Cup Double Ball Mount - Short (RAM-B-166U-A)

RAM-B-166U-A
Ex. Tax: $102.00 NZD
$102.00 NZD
Sale Sold out

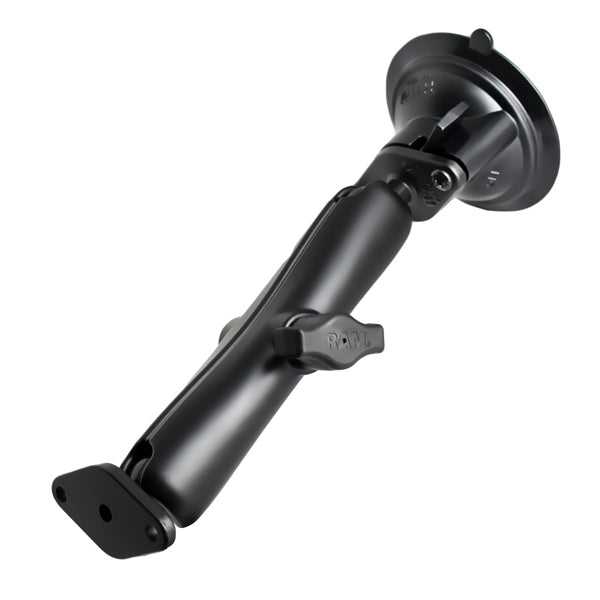

The RAM-B-166U-A consists of a 3.3" diameter suction cup twist lock base, SHORT length double socket arm and diamond base adapter. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM® adhesive disks. The mount is designed with a RAM® 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM® cradles.

Features

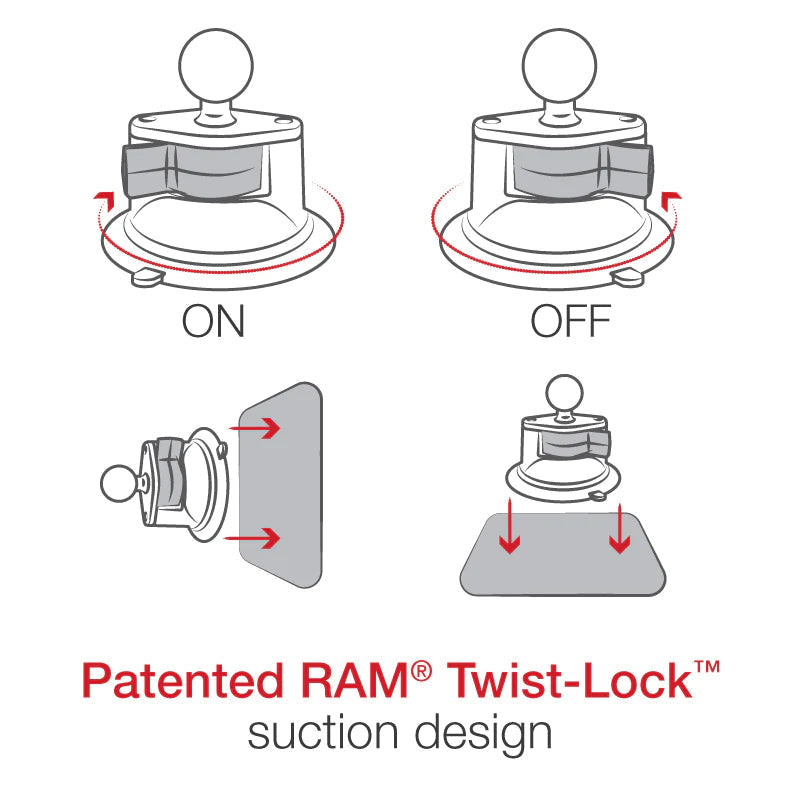

  • RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
  • Includes B size short length RAM® double socket arm and diamond bases with B size 1" rubber balls; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Tech Specs

PRODUCT DIMENSIONS
  • Overall Height: 5.44"
SUCTION SIZE
  • 3.3" Diameter
SOCKET TO SOCKET LENGTH
  • 1.75"
HOLE PATTERN
  • 2-Hole AMPS: 1.912"
BALL SIZE
  • B Size (1")
WEIGHT CAPACITY
  • Standard Use: 2 lbs
  • Heavy-Duty Use: 1 lb
MATERIALS
  • Marine-grade aluminum
  • High strength composite
PACKAGING TYPE
  • Poly Bag
WEIGHT
  • 0.52 lb

Product Guides

RAM Twist-Lock Suction Cup Assembly Guide
RAM X-Grip Assembly Guide

Package Content

Components
  • 1 x RAM® Twist-Lock™ Suction Cup Base with Ball (RAM-B-224-1U)
  • 1 x RAM® Double Socket Arm - B Size Short (RAM-B-201U-A)
  • 1 x RAM® Diamond Ball Base - B Size (RAM-B-238U)
